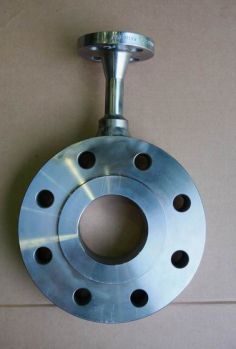

Instrumentation Flanges & Bleed Rings:

PNext offers a complete range of Instrumentation Flanges and Bleed Rings covering standard ASME and API Flanges, as well as the Compact Flange and Clamp Connectors in sizes through 30" (750mm). Supplied with either fabricated branch connections or integral tapping in pressure classes through 30,000psi (2068 bar).

Features:

Standard NPT, Autoclave type tapping or integrated branch connections

Single or multiple instrumentation ports options

Instrumentation flanges offered with either standard or Compact Flange end connections

Design options suitable for high H2S, CO2, high erosional velocities and critical service applications

Specification:

Codes: ASME B16.5, API 6A

Ratings: ASME 150lbs through 4500lbs, API 6A 2M through 30M. Temperature range from -50°F (-46°C) to 500°F (260°C)

Sizes: 1/2" (12mm) through 30" (750mm)

Materials: CS, CS c/w Cladding, Alloy, SS and Chrome/Nickel Alloys

Instrumentation Tubing and Fittings:

Instrumentation and Hydraulic Tubes are in a comprehensive range of Corrosion-Resistant Stainless Steels and Nickel Alloys covering outside diameters from (OD) 3 to 50 mm (0.118 to 1.968 in.). All sizes are supplied with smooth surfaces and close dimensional tolerances reducing the risk of leakages when connecting tubes with couplings.

All of the materials are produced as a seamless tube in the bright-annealed condition both OD and ID to ASTM and ASME specifications. Other grades can also be supplied upon request.

• Close Coupled Instrument Mounting System

• Instrumentation Manifolds

• Instrumentation Valves

• Push Fit Tube Connectors

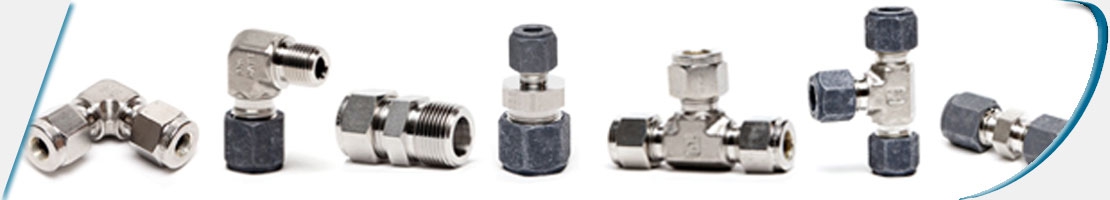

• Single Ferrule Compression Fittings

• Twin Ferrule Compression Fittings

Working closely with our Customers, we became aware of their need to have a single reference-point for purchases of Instrument Bulk Materials, and thus rapidly rose to become a market leader in “package” supplies.

Beside our products, we can supply a wide range of components as listed below:
